Aluminum casting mill
Aluminum casting mill

Source:Hengzhong Heavy author:Admin Date:13-07-25 Glance Over:

      Aluminum continuous casting process is an advanced production technology. The machine is to produce aluminum sheet/coil from ingot. The casted roll could be used on cold rolling line for further processing. Aluminum Continuous Caster Machinery of our company: the tilting double drive rolling machine including mechanical, hydraulic and electric type. We shall provide professional installation and production guidance. Fusing casting and hot rolling process, rolling machine can turn the liquid aluminum after continuous roll casting into coiling strip with thickness of 6-10 mm .



Aluminum alloy
1000,3000,8000 series
Product thickness
5-10 mm
Max. Rolling force
6000-25000kn
Product width
800--2200 mm
Length of roll surface
1000-2400 mm
Dia. of casting roll
Φ600-1200mm
Max. Coil weight
Max 20000 kg
Rolling speed
800-1500 mm/min
Electric control system
ABB SIEMENS
Other typical mill(or machine)
Φ680×1600
Φ720×1750
Φ850×1700
Φ960×2000
Φ1000~1200×1800~2400


Characteristics
  1, Production flow: Aluminum melting, automatic level control, degassing, refining, casting and rolling, coiling.
  2,Tilting continuous caster ensures the high quality of product.
  3, Hydraulic pressing down device to adjust the roller.
  4, Flame spray system.
  5, High stability of casting and high quality of product surface.
  6, Latest technology with PLC automatic control system.
  7, Low consumption of energy.
  8, Low investment and short production cycle.
  9, Easy and cheap maintenance.
  10, Customized design.

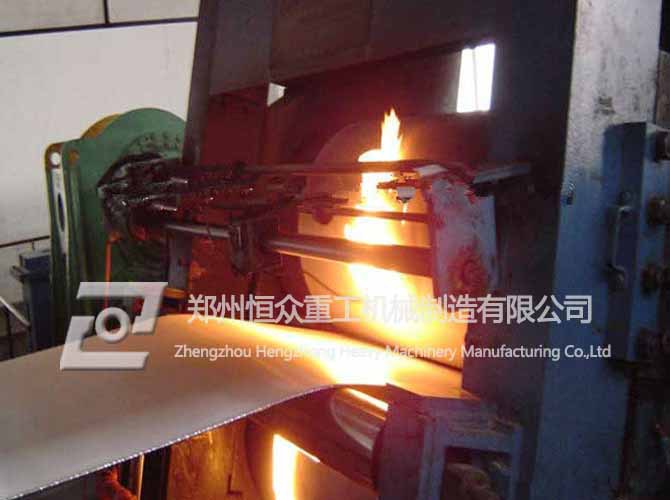

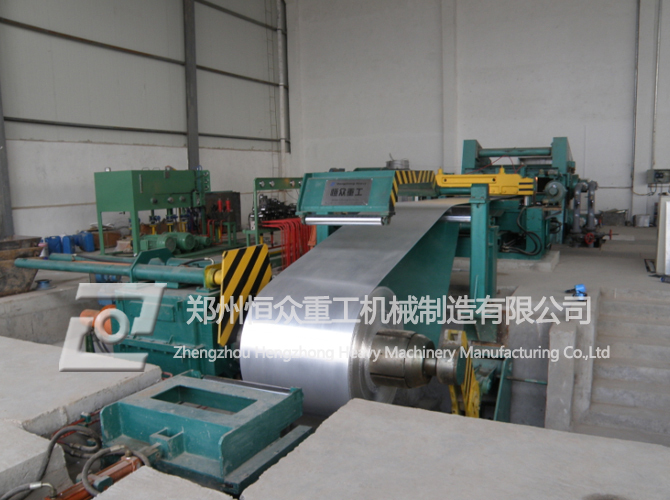

Production overviews




Certifications

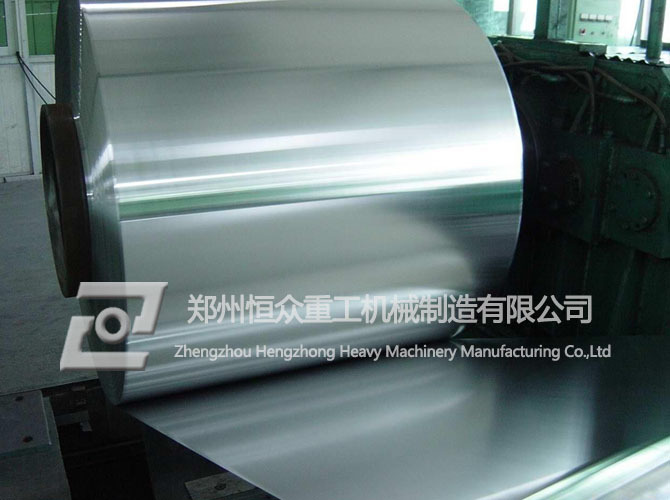

Finished products

Company information
  As an aluminum equipment company, Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd. integrates design, manufacture and installation and has a strong technical force, advanced production capacity and high quality after-sale service team. The products have been appreciated & recognized by the old and new customers. Now, our products are sold well all over China and have been exported to the Middle East which makes us one of the best leaders in aluminum processing equipment industry. We uphold the management philosophy of ' Honesty to constant, all win with the public ' & the principle of ' Customers come first ' to provide our customers with high-quality service.
  Our company specializes in the design & manufacture of aluminum equipment. We can also undertake the design and manufacture of other non-ferrous metal equipment. Our concrete products include such as cold rolling mill, aluminum casting machine , aluminum foil rolling mill, tension leveling line, cut to length line, aluminum cleaning line, cast roll, cast roller, steel sleeve, aluminum-related. We can undertake the mechanical, hydraulic & electrical upgrading of the above equipment.
  If you want more information about our products, please don't hesitate to contact us. We are looking forward to your inquiry and cooperating with you in the near future.
